RAUSCH CONFORT ELKA600

Sewerage / CCTV Systems

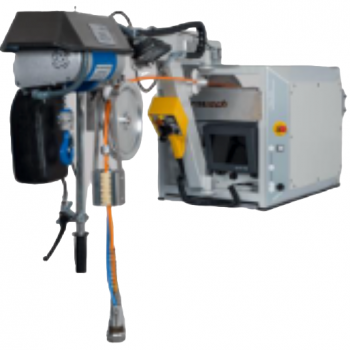

Elka 600, has an integrated 8" LCD monitor and LED work lights. Thanks to the unwinding aid, the telescopic swivel arm and the integrated chain winch with a chain length of 20 meters to raise and lower the camera and the caterpillar, Elka is perfectly suited to different user requirements. It is controlled by remote control, optionally by wireless radio remote control, and is secured by an electrical and mechanical drum brake.

FW 90: Our small all-rounder with three drive axles and high weight for optimum traction. Thanks to the integrated laser diodes, the KS 60 rotary and circular head digital camera can determine diameters precisely.

BROCHURE

Gallery

FW carriage 90•100-600mm

• 3 drive axles
• Manual/automatic steering function
• Auto reverse: continuous
• 30° elbows from 150 mm
• quick camera release
• Mechanical camera height adjustment
• Electric lifting equipment
• Backup camera
• Tilt sensor
• Temperature measurement
• Additional lights
• Permanent pressure monitoring



KS camera 60•100-600mm
• Circular and panoramic head camera
• HD resolution: 1920 x 1080 pixels
• SD resolution: more than 530 TV lines
• Manual and automatic focus control
• 2 laser diodes for measurement tasks
• Multiple magnification
• Built-in location: 33 KHz and 512 Hz
