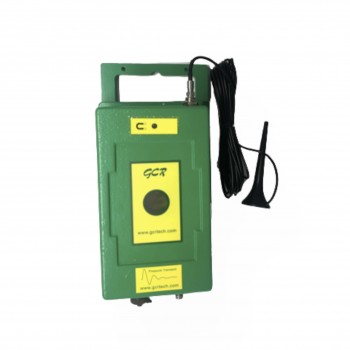

TRITON IT

The TRITON IT Pressure Transient Recorder can detect and record pressure surges, with frequencies of up to 1000 readings per second, without interfering with the main reading. During threshold logging, the logger checks the pressure signal against the set threshold 10 times per second and once triggered begins logging data at one of the configurable logging rates of 10 Hz, 100 Hz or 1 KHz.

If external power is connected, the logger can sample pressure at 1KHz continuously, detect and record data at 10Hz, 100Hz or 1KHz before, during and after the overpressure event. The logger software can also be upgraded in the field via the IrDA communications link.
